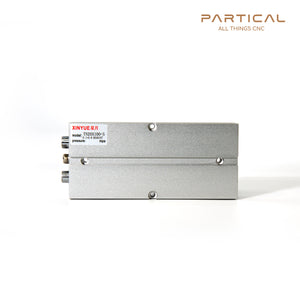

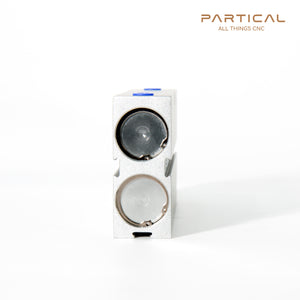

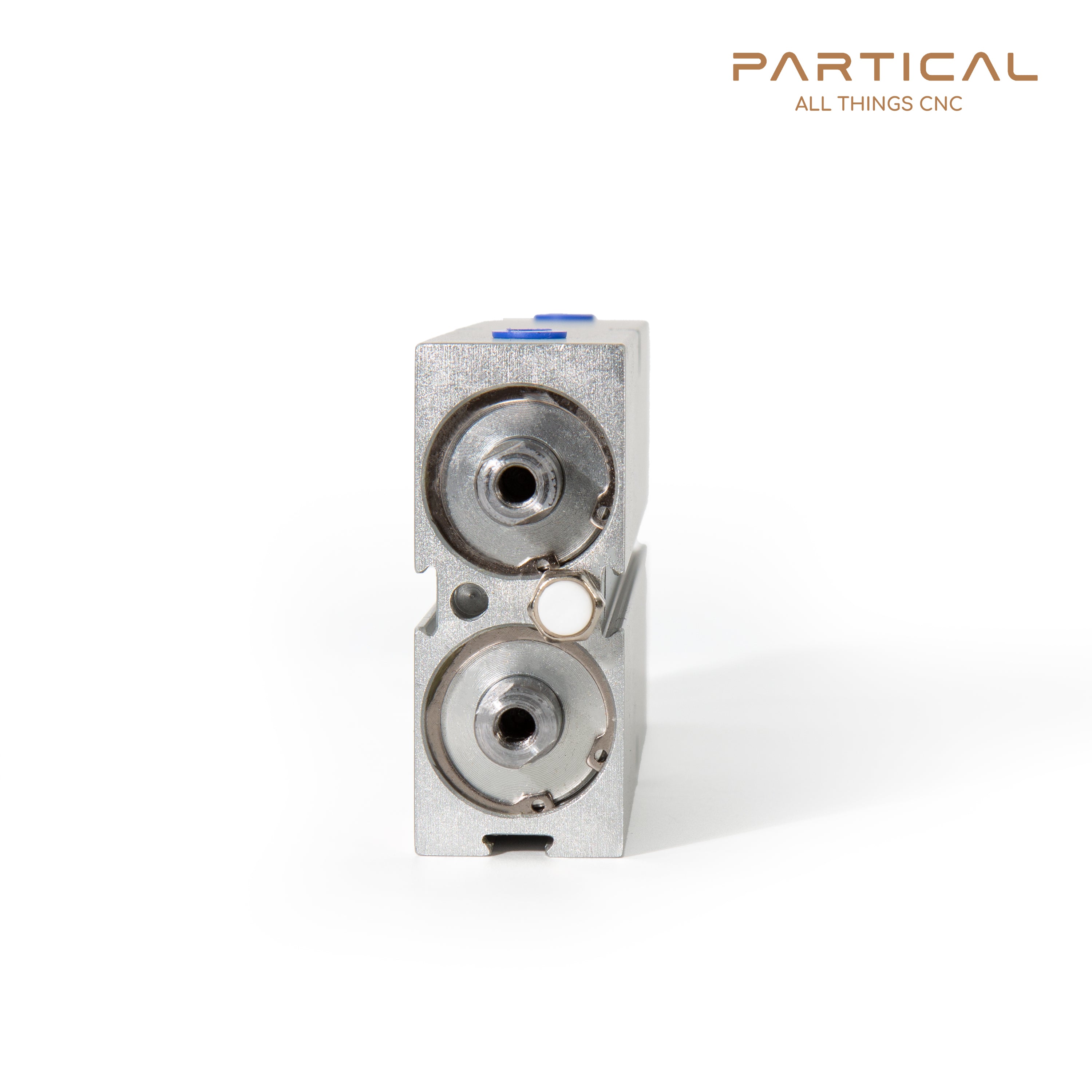

TN25x100-S Pneumatic Air Cylinder – Dual Rod for CNC Router

Sale price £85.00 GBP

Notify me when available

Register to receive a notification when this item comes back in stock.

Ask a question
Share

Key Features :

    • 25 mm Bore × 100 mm Stroke: Provides solid force output and an ample 100 mm range of linear motion.

    • Dual-Rod Stability: Twin piston rods ensure non-rotating, stable operation and resist bending or twisting under side loads.

    • Space-Saving & Versatile Mounting: Compact guided design saves space, with mounting holes on three sides for flexible installation in any orientation.

    • Adjustable Cushioning: Built-in bumper at the end of stroke absorbs impact and allows fine adjustment of the stroke length.

    • Double-Acting with Magnet: Pneumatic pressure extends and retracts the cylinder (double-acting design), and an internal magnet enables use of sensor switches for position feedback.

    • Standard Air Pressure: Operates on 0.15–1.0 MPa (≈22–145 psi) compressed air for easy integration with shop air systems

    • Designed for compatibility: This cylinder serves as a reliable replacement for the M2 extractor hood.
