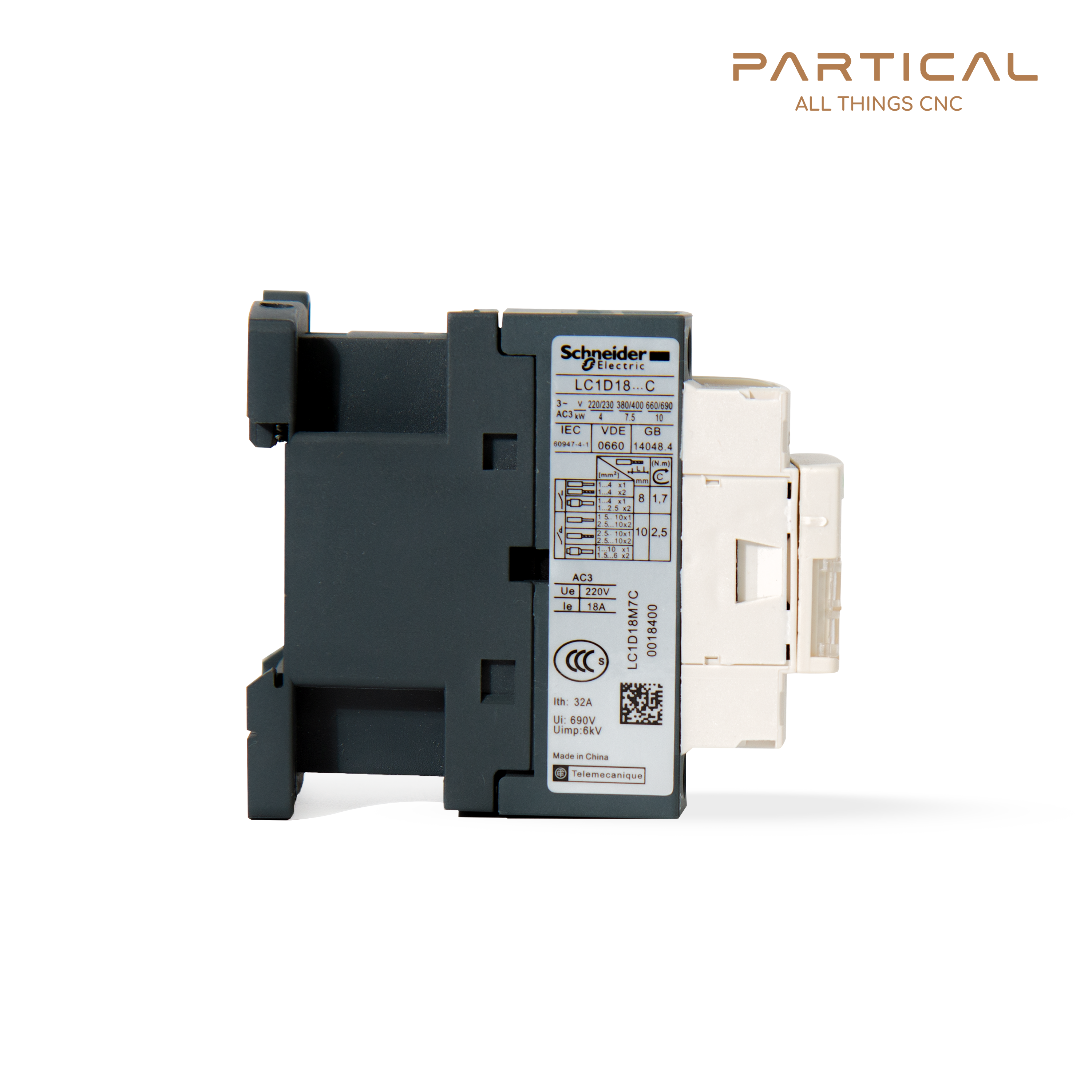

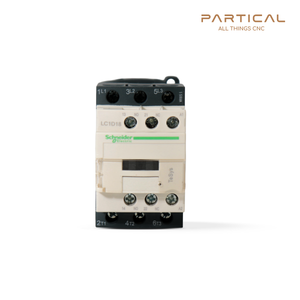

Schneider Contactors and Thermal Protection

3 phase 380v - 450v.

220v AC Coil TeSys Control

Brand Schneider Telemecanique

Auxiliary Contact 1 NO + 1 NC

Coil Voltage 230V AC

Colour Black/Grey

Contact Configuration 3 NO

Current Rating Ac1 32A

Current Rating Ac3 18A

Depth 86mm

Dimensions (H)77 mm x (W)45 mm x (D)86 mm

Frequency 50/60 Hz

Guarantee 12 Months

Height 77mm

IP Rating IP2X

Mounting DIN Rail / Plate

Number of Poles 3 Pole

Packaging Types Each

Product Range TeSys D

Standards EN 60947, IEC 60947, UL 508, CSA C22.2 No 14

Unspsc V18 39121529

Unspsc V24 39121529

Weight 0.357kg

Width 45mm

kW Rating 9kW

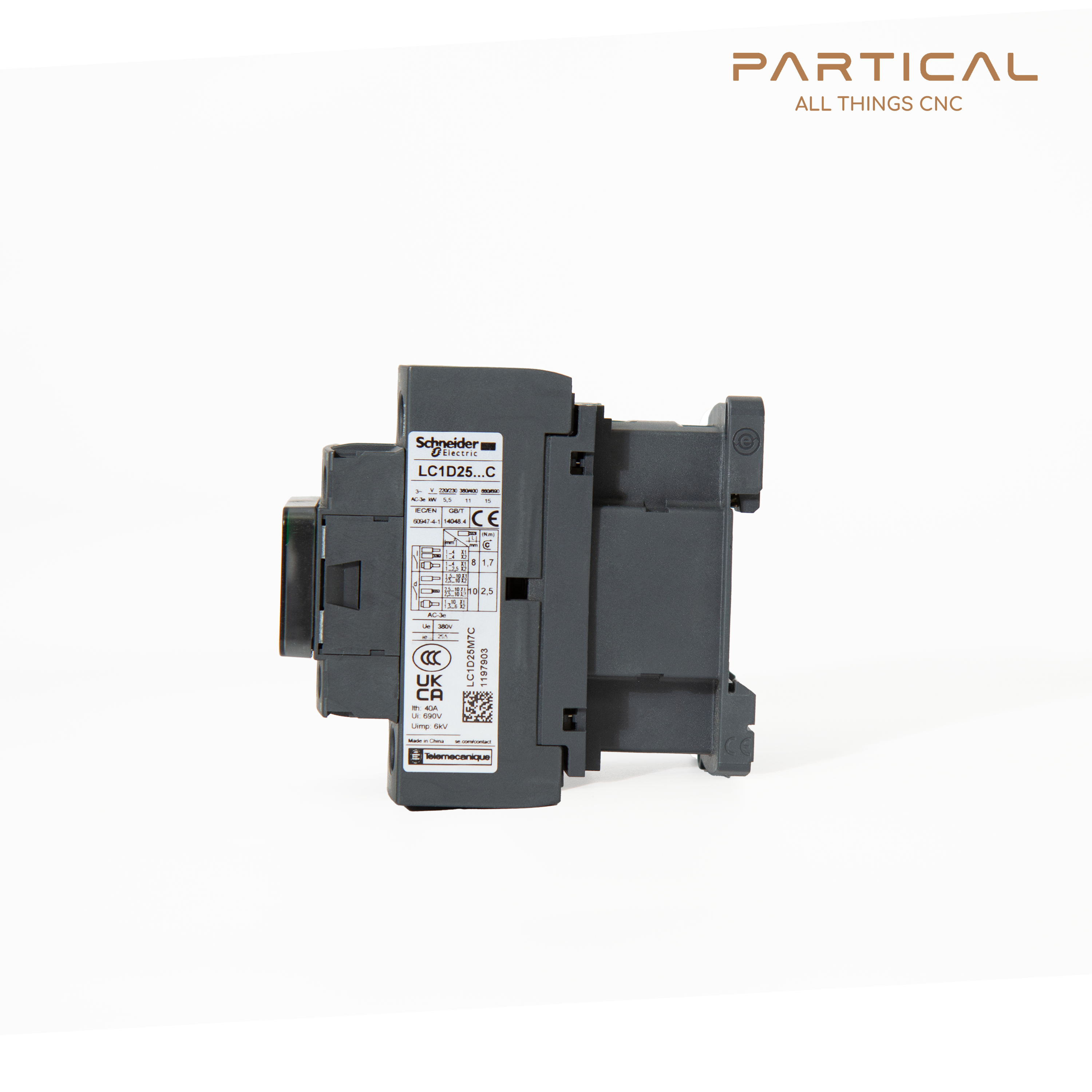

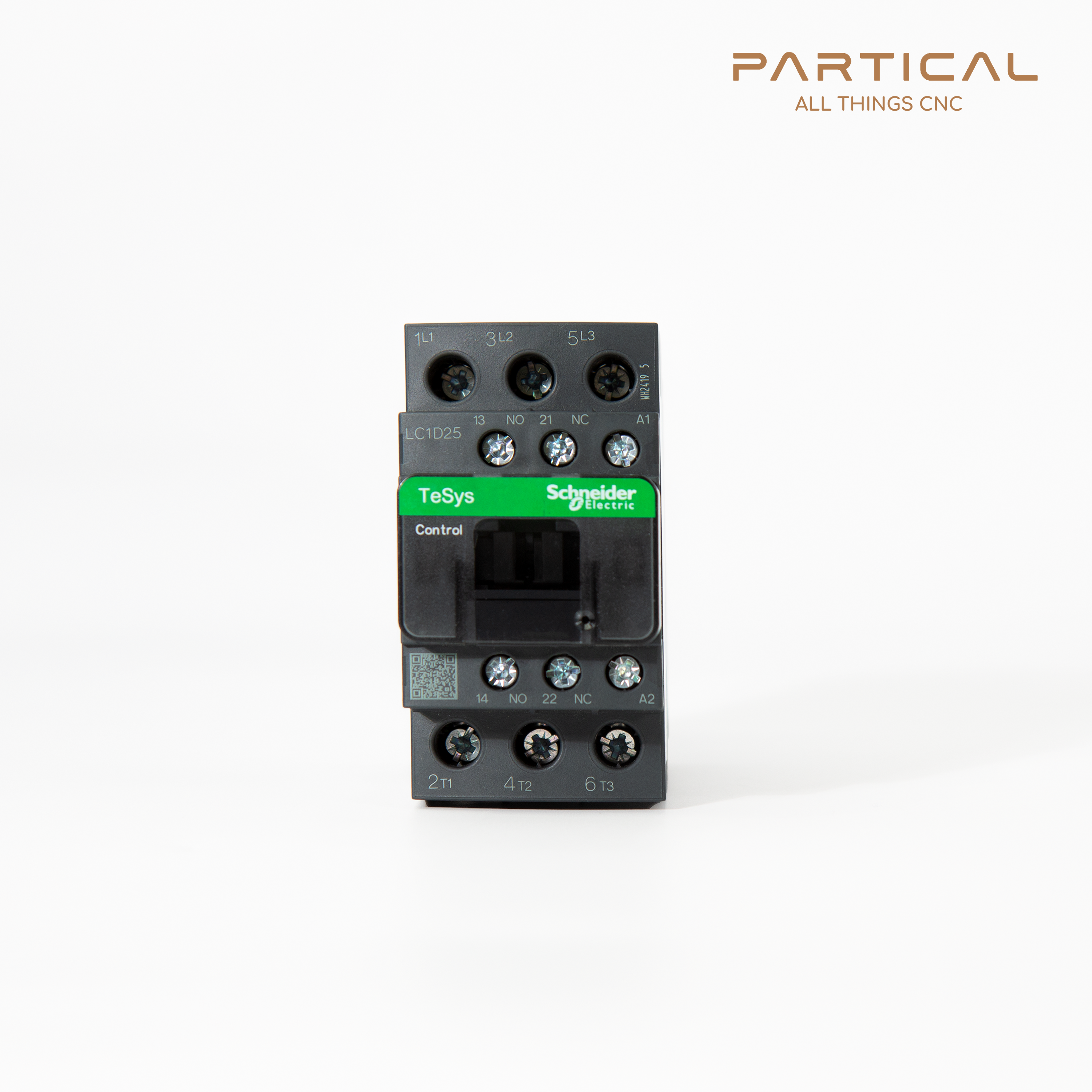

 LC1D25F7C 380V 11kW
