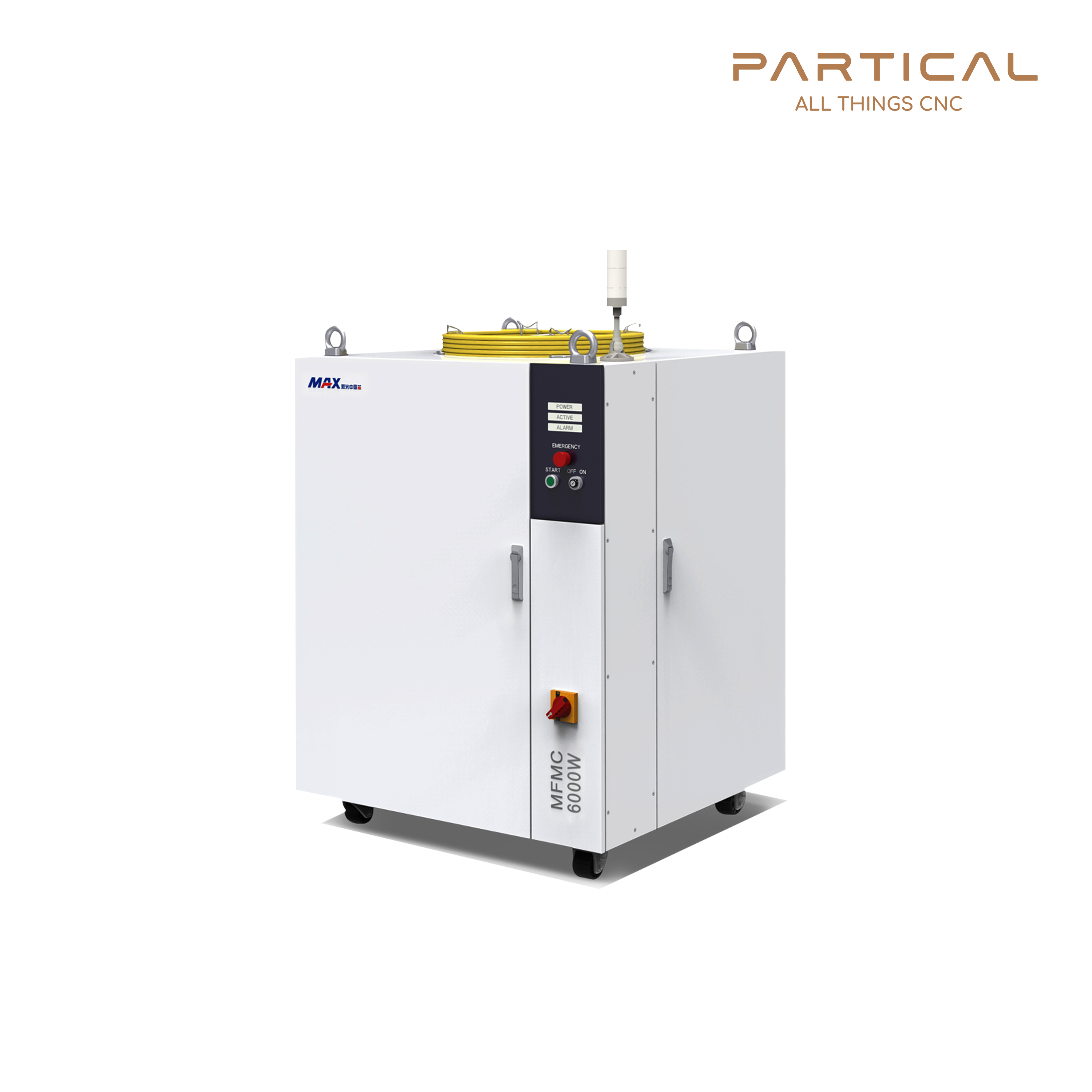

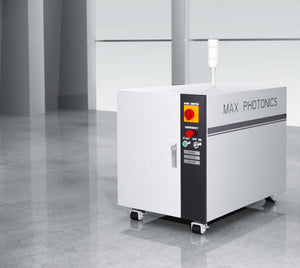

MAX PHOTONICS FIBER LASER SOURCE MFSC-6000M 6000Watt 6kW NEW

Laser source MAX 6kW.

Model MFSC-6000M


OPTICAL SPECIFICATIONS
Nominal Power 6000W
Mode of Operation CW/Modulated
Polarization - Random
Power Tunability 10 to 100%
Wavelength 1080 ± 5 nm
Power Stability ±1 %
Laser Beam Quality, BPP
3.5 to 4.5 mm x mrad (100μmQBH)
5 to 6.5 mm x mrad (150μmQBH)
6.5 to 9 mm x mrad (200μmQBH)
Modulation Frequency ≤ 5kHz
Preview Red Light Power 200 μW

FIBER DELIVERY SYSTEM
Interface QBH LOE
Length 20m standard, other lengths optional
Diameter 100/150/200 μm 150/200 μm
Bending Radius 200 mm

ELECTRICAL RATINGS
Supply Voltage 400 (-15% to +10%) VAC 3-phase

OTHER SPECIFICATIONS
Operating Temperature +10 to +40℃
Storage Temperature -10 to +60℃
Humidity 10 to 80%
Cooling Method Water Cooling
Cooling Medium Distilled water/ Glycol Antifreeze

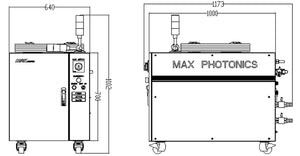

Dimension 640×1173×1102 mm
230(±5) kg

Brand New. Typical QBH torch to fit most RAYTOOLS, PRECITEC, BOCI, AU3TECH laser heads.

Make sure you will match your new laser source with chiller equivalent to your source kW.

Warranty by MAX Photonics

NOTE: Please make sure a professional trained fiber engineer will be installing your new laser source. Even a tiny contamination may damage your laser head lenses or in worst case scenario damage source beyond repair.

Allow 48h to provide you with unlocking codes for fiber laser system.
