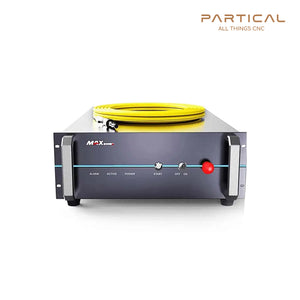

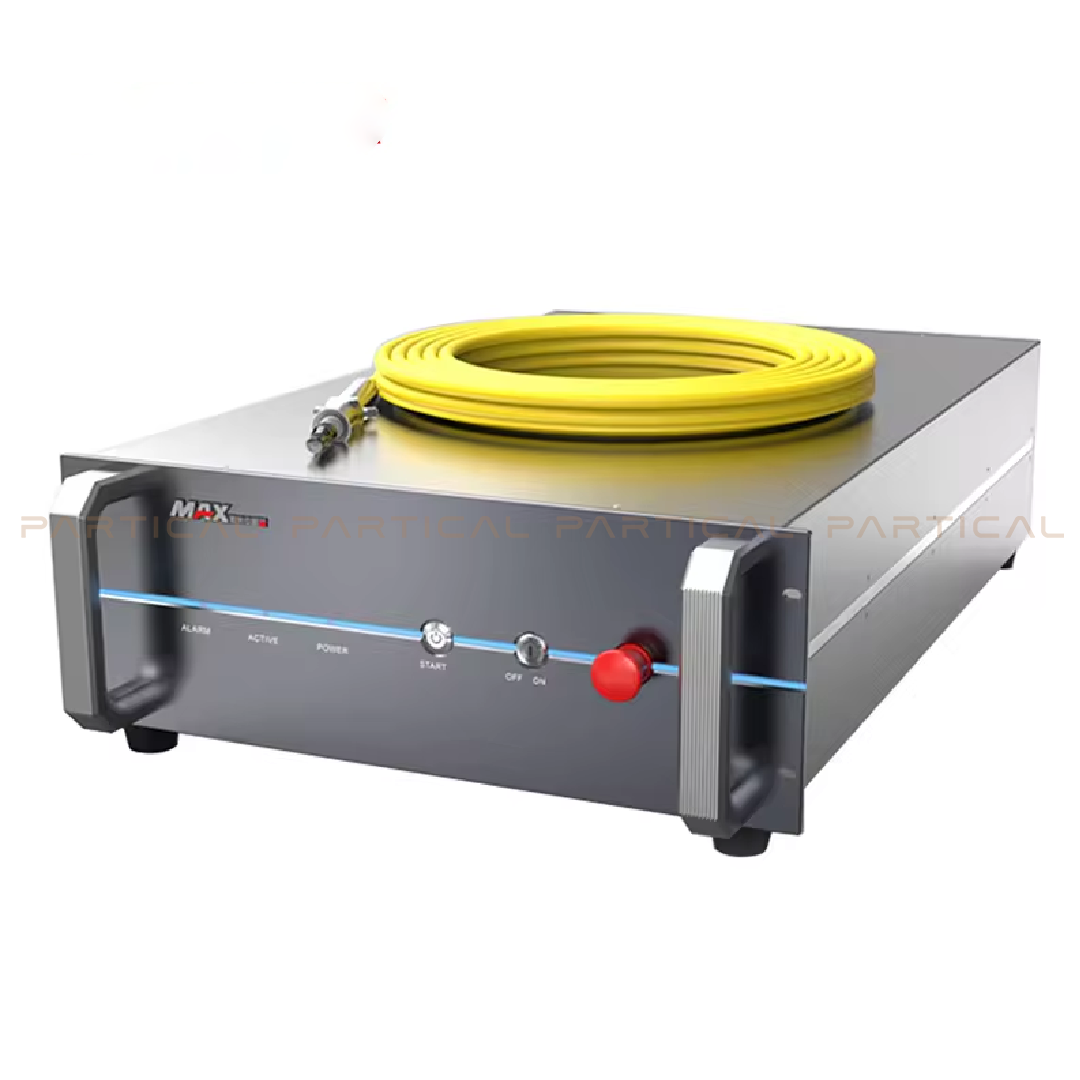

FIBER LASER SOURCE MAX MFSC - 4000X - BKW4.8 4kW NEW

Fiber Laser source MAX 4kW.

Model MFSC-4000X


OPTICAL SPECIFICATIONS
Nominal Power 4000Watt

Mode of Operation CW/Modulated
Polarization - Random
Power Tunability 10 to 100%
Wavelength 1080 ± 5 nm
Power Stability ±1 %
Laser Beam Quality, BPP
3.5 to 4.5 mm x mrad (100μmQBH)
5 to 6.5 mm x mrad (150μmQBH)
6.5 to 9 mm x mrad (200μmQBH)
Modulation Frequency ≤ 5kHz
Preview Red Light Power 200 μW

FIBER DELIVERY SYSTEM
Interface QBH LOE
Length 20m standard, other lengths optional
Diameter 100/150/200 μm 150/200 μm
Bending Radius 200 mm

ELECTRICAL RATINGS
Supply Voltage 400 (-15% to +10%) VAC 3-phase

OTHER SPECIFICATIONS
Operating Temperature +10 to +40℃
Storage Temperature -10 to +60℃
Humidity 10 to 80%
Cooling Method Water Cooling
Cooling Medium Distilled water/ Glycol Antifreeze
Dimension 482.6×950×193 mm
Weight 85kg

Brand New. Typical QBH torch to fit most RAYTOOLS, PRECITEC, BOCI, AU3TECH laser heads.

Warranty by MAX Photonics

NOTE: Please make sure a professional trained fiber engineer will be installing your new laser source. Even a tiny contamination may damage your laser head lenses or in worst case scenario damage source beyond repair.

Allow 48h to provide you with unlocking codes for fiber laser system.
