Home FIBER LASER HEAD BOCI BOCHU BLT642H UP TO 15KW POWER AUTOFOCUS 200 FOCAL LENGTH

FIBER LASER HEAD BOCI BOCHU BLT642H UP TO 15KW POWER AUTOFOCUS 200 FOCAL LENGTH

Sale price £14,499.00 GBP

Notify me when available

Register to receive a notification when this item comes back in stock.

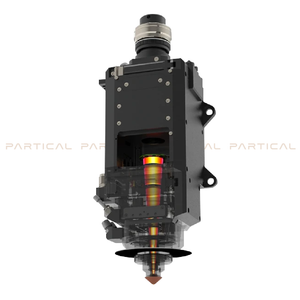

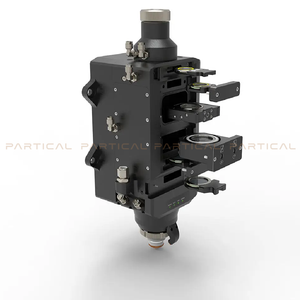

BLT642H Fiber laser head from the famous Shenzen manufacturer Boci / Bochu in China.

Made by the same company as Cypcut software and Fscut controllers they work perfectly in unison.

Used by range of FABERTEC fiber laser machines.

BOCI BLT642H version can work with laser sources up to 15kW power. The focal length of 200 is mostly designed for thicker sheets from approx 6-10mm.

BOCI laser heads are a top choice when it comes to quality and beam accuracy, focus and ease of maintenance.

BLT 6 Series smart cutters are especially developed for ultra-high power laser equipment (max of 40kw). Brand new beam path design and optimized optical lens bring you great performance with stable cutting, simple installation and setup, and double dust prevention. The Smart Piercing and Auto Recut features, meeting the highly demanding standard of air as well as N2 high-power cutting, considerably improve efficiency and yield.

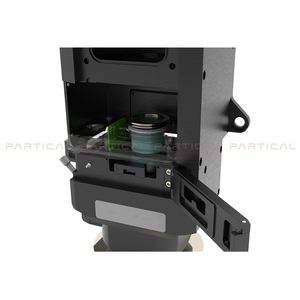

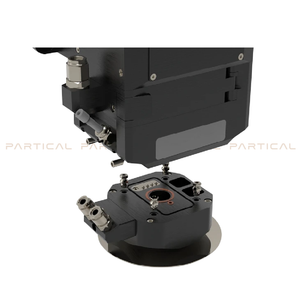

Boasting 4 protective lenses and straight access to collimating and focusing lenses gives operator assurance that he or she can replace them and keep the head clean in no time.



The few of the most impressive features of Boci heads are pressure sensing of technical gases which allows for dialing your exact pressure at the nozzle. Another handy feature is multiple temperature sensors of the nozzle chamber and protective lenses drawers to make sure nothing is overheating at the point of beam.



Adding the fact that PARTICAL is holding a stock of all consumables, seals, nozzles and spare parts you can rest assured no lengthy stopovers will happen in your workshop.



BLT 6 series Smart Cutter Feature
Auto Recut Protective Screws Temperature Monitor Sensor Cavity Temperature Monitor Focusing Test
Smart Piercing Focus Lens Monitor Nozzle Cooling Cavity Humidity Monitor Spring Energized Seal Test
Co-edged Smart Piercing Protective Lens Monitor Water Cooling Sensor Cavity Gas Pressure Monitor Gas Pressure Monitor

*some of the features work from 4000E controller and CypcutE or Hypcut software
